立加 | Mazak马扎克 | VTC 820/30 | 2011年

[货号] CU20GSZ071615E3

[型号] VTC 820/30

[制造商] Mazak | 马扎克

[年份] 2011年

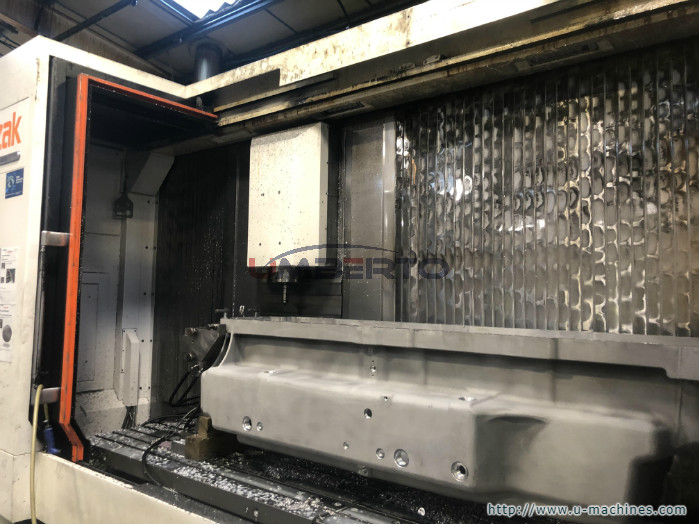

Milling machine Mazak VTC 820 / 30, Y. 2011

Vertical machining center

Machine type: Mazak VTC 820 / 30

Control:   Mazatrol Matrix Nexus

Year:         2011

Specifications

Travel:

X-Axis: [mm]   3.000

Y-Axis: [mm]    820

Z-Axis: [mm]    720

Rapid motion: (X/Y/Z) [m/min.]      50

Distance table surface - spindle nose: [mm]  140 - 860

Rotational speed: [rpm]  35 - 18.000

Spindle motor: [kW]        35

Tool: ISO 40

Toolchanger

Tool capacity:  48

Table size: [mm]      3.500 x 820

Max. Table Load: [kg]      2.500

Machine weight: [kg]      16.100

Equipment

Chip conveyor: Cromar

Internal cooling: [bar] 15

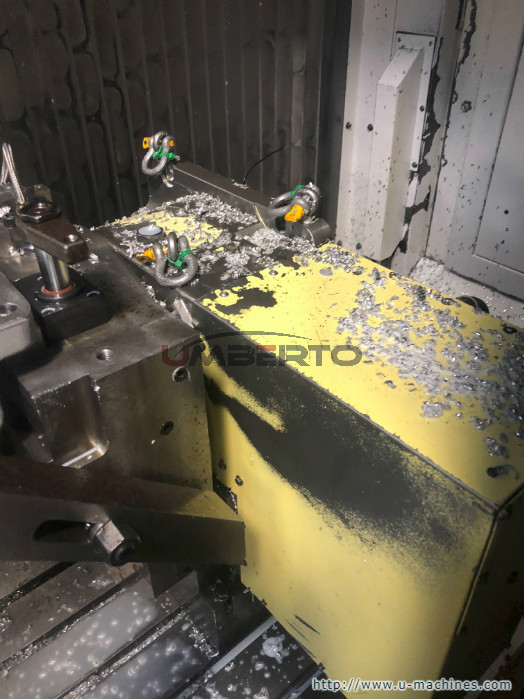

NC rotary table: Nikken 360,000°
