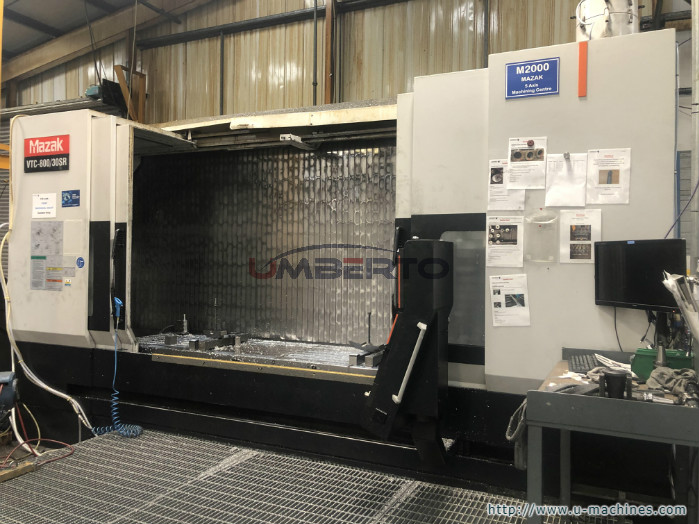

立加 | Mazak马扎克 | VTC 820/30SR | 2009年
产品说明
立加 | Mazak马扎克 | VTC 820/30SR | 2009年 [货号] CU20GSZ071618E [型号] VTC 800/30SR [制造商] Mazak | 马扎克 [年份] 2009年 Specifications Travel: X-Axis: [mm] 3.500 Y-Axis: [mm] 800 Z-Axis: [mm] 720 B-Axes: 220° (+/-110°) C-Axis: 0,001° Rapid motion: (X/Y/Z) [m/min.] 50 Feed: (X/Y/Z) [m/min.] 0,010 - 8 Amount of controlled axes: 5 Distance table surface - spindle nose: [mm] 140 - 860 Rotational speed: [rpm] 18.000 Input power: [kW] 35
Tool: ISO 40 Toolchanger Tool capacity: 48 Tool diameter: [mm] 130 Tool lenght: [mm] 350 Max. tool weight: [kg] 8 NC rotary table Nikken Table size: [mm] 500 Machine weight: [kg] 16.100 Req. space (LxBxH): [m] 5,25 x 3,50 x 3,30 |
