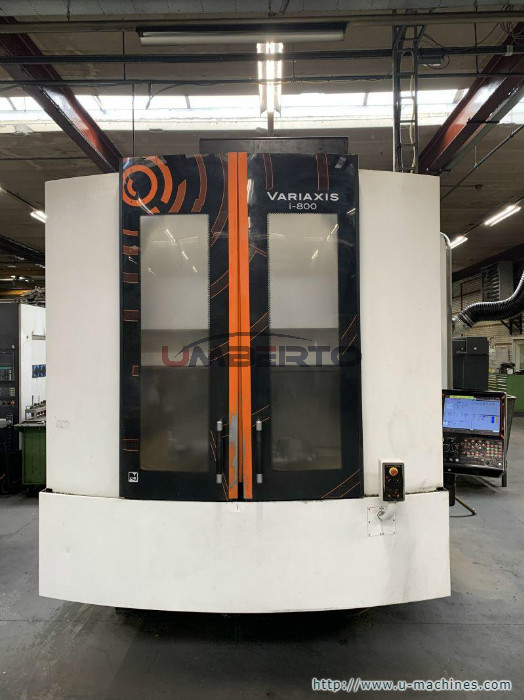

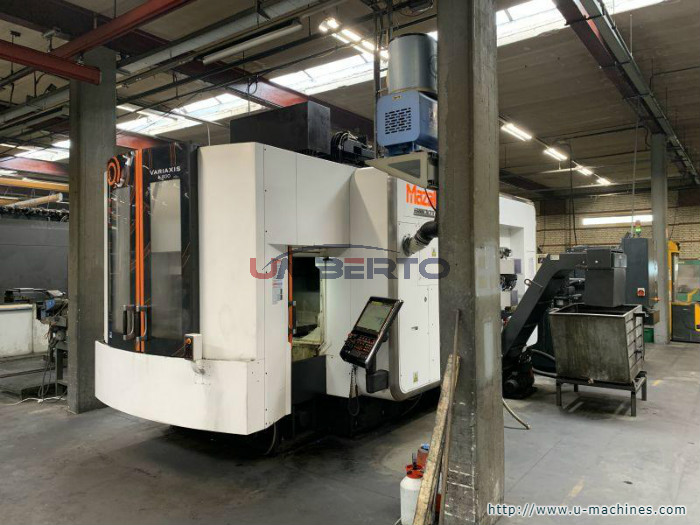

立式五轴联动加工中心 | Mazak马扎克 | Variaxis i-800 2PC | 2016年

[货号] CU20GSZ071625

[型号] Variaxis i-800 2PC

[制造商] Mazak | 马扎克

[年份] 2016年

Specifications

5-axis-simultaneous

Travel:

X-Axis: [mm] 730

Y-Axis: [mm] 850

Z-Axis: [mm] 560

A-Axes -120° / +30°

C-Axis +/- 360°

Rapid motion: (X/Y/Z) [m/min.] 60 / 60 / 56

Amount of controlled axes: 5

Rotational speed: [rpm] 10.000

Input power: [kW] 37 / 30

Torque: [Nm] 350 / 239

Tool: Iso 50

Toolchanger

Tool capacity: 40

Tool diameter: [mm] 125 / 210

Tool lenght: [mm] 400

Max. tool weight: [kg] 20

NC-panning and rotary Table

Work piece diameter: [mm] 730

Workpiece thickness: [mm] 500

Table size: [mm] 500 x 500

Max. Table Load: [kg] 500

Machine weight: [kg] 21.000

Req. space (LxBxH): [m] 2,695 x 5,44 x 3,515

Equipment

Air blow

Chip conveyor

Internal cooling: [bar] 70

cooling system Knoll

Caliper Renishaw RMP 600

Oil mist separator

Software:

  Auto peckin cycle with load detection

  B) Synchronised tapping

  B) G00 Slope constant

  5-Axis Machining Package: 5 Axis spline interpolation

  B) Mazacc 2-D software (shape compensation)

  D) Mazacc 3-D High speed software package

  B) Shape compensation for rotary axis

  D) High smooting control

  F) EIA/ISO function simultanious 5 Axes

  F) Tool tip point control/simultanious 5 axes

  G) Fine spline interpolation (EIA)
