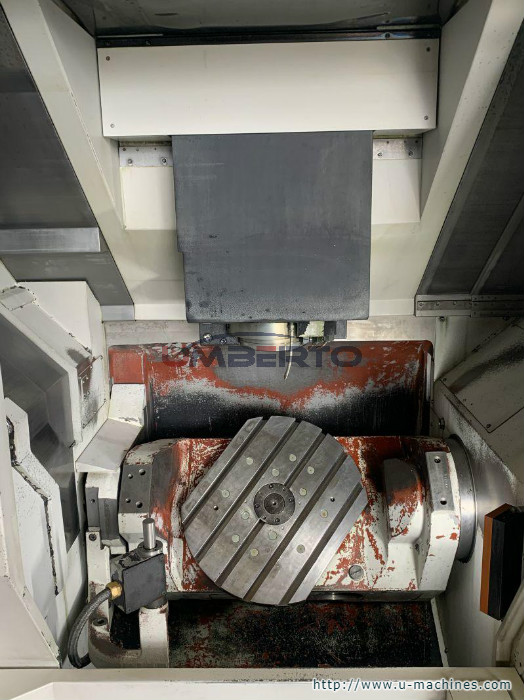

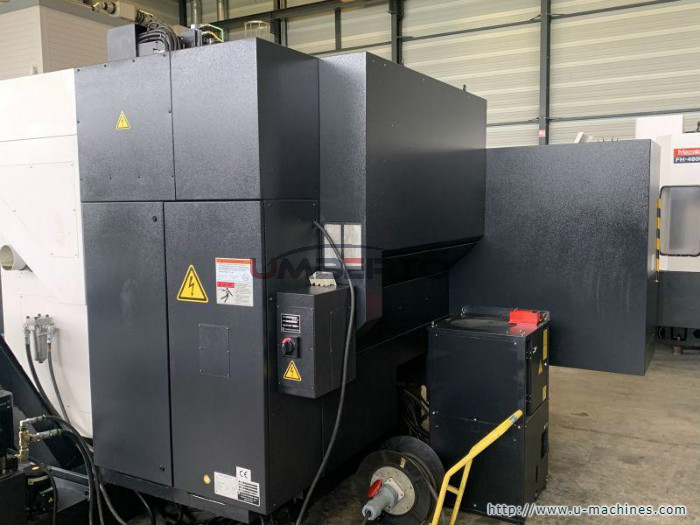

立式五轴联动加工中心 | Mazak马扎克 | Variaxis 500-5X II | 2007年

[货号] CU20GSZ071610

[型号] Variaxis 500-5X II

[制造商] Mazak | 马扎克

[年份] 2007年

Specifications

Travel:

X-Axis: [mm] 510

Y-Axis: [mm] 510

Z-Axis: [mm] 460

Rapid motion: (X/Y/Z) [m/min.] 40 / 40 / 30

Angular range: A-axis; -120° bis +30°

Angular range: C-axis; +/- 360°

Rotational speed: [rpm] 12.000

Input power: [kW] 22 / 15

Tool: CAT-40

Tool capacity: 60

Time for tool change: [s] 4,5

Tool diameter: [mm] 80 / 125

Tool lenght: [mm] 300

Tool weight: [kg] 8

Amount of paletts: 2

Table size: [mm] 500 x 400

Max. Table Load: [kg] 300

Req. space (LxBxH): [m] 2,805 x 2,950 x 2,838

Machine weight: [kg] 7.700

Equipment

Chip conveyor

Auto. Power Off

Caliper B Optical Renishaw MP 10

Software: B) Synchronised Tapping

Software:

Software: EIA Dynamic compensation 2 (Included 1)

Software: High Smooting Control

Software: Cylindrical Interpolation
