五轴联动加工中心 | Mazak马扎克 | Variaxis i-500 | 2016年

[货号] CU20GSZ071620

[型号] Variaxis i-500

[制造商] Mazak | 马扎克

[年份] 2016年

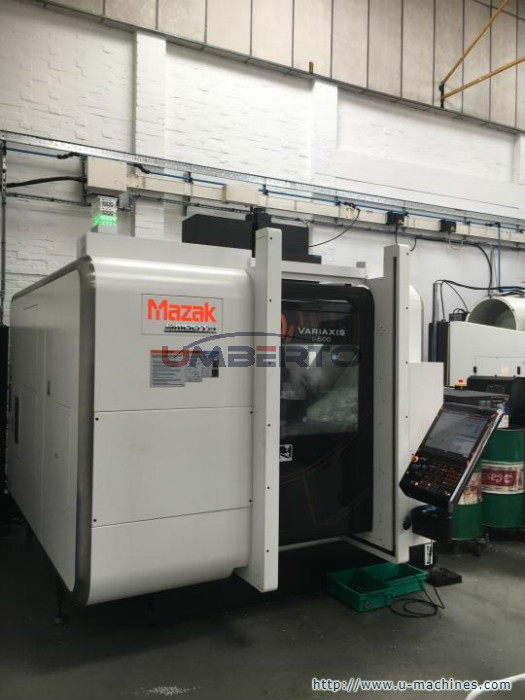

Milling machine Mazak Variaxis i 500, Y. 2016

Universal machining center

Machine type: Mazak Variaxis i 500

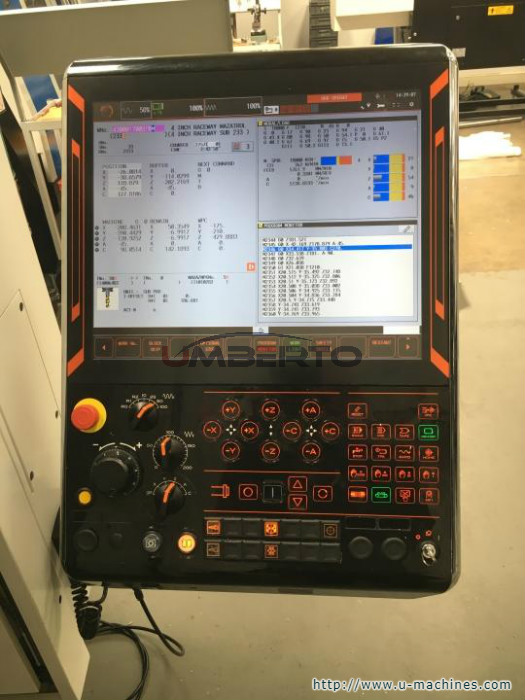

Control: Mazatrol Smoothx

Year: 2016

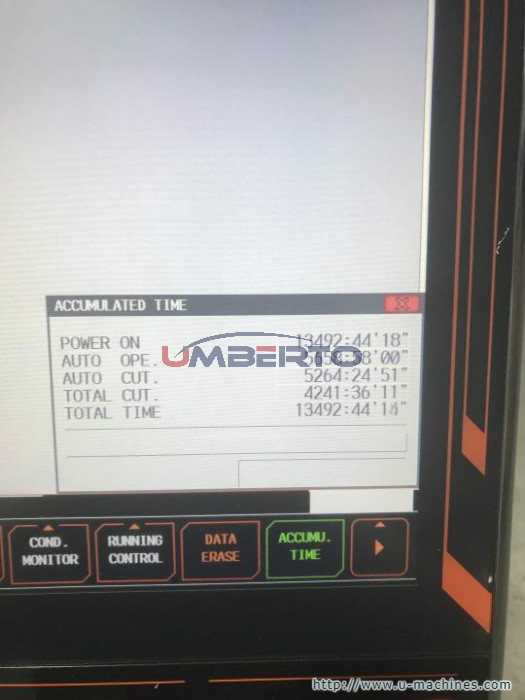

Spindle running time: [h] 5.200

Specifications

5-axis-simultaneous

Amount of controlled axes: 5

Travel:

X-Axis: [mm] 350

Y-Axis: [mm] 550

Z-Axis: [mm] 510

B-Axes

C-Axis

Feed: (X/Y/Z) [m/min.] 60

Amount of controlled axes: 5

Rotational speed: [rpm] 18.000

Toolchanger

Tool capacity: 40

Tool: SK 40

Tool diameter: [mm] 90 / 130

Tool lenght: [mm] 300

Max. tool weight: [kg] 8

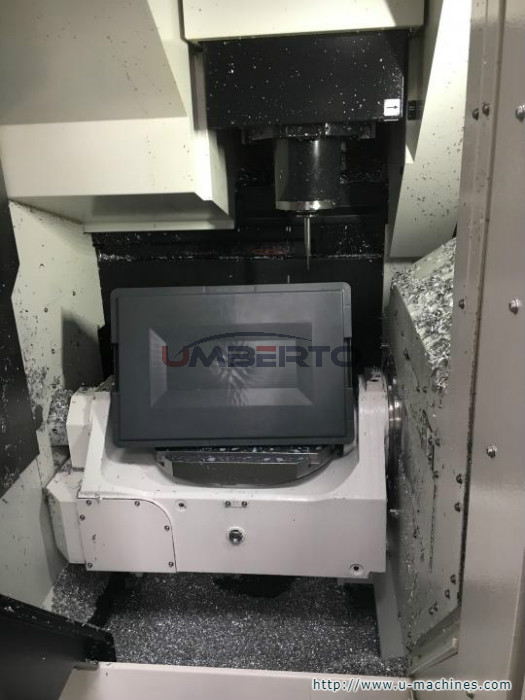

NC-panning and rotary Table

Table size: [mm] 500 x 400

Power consumption: [KW] 61.8 kVA

Machine weight: [kg] 8.000

Req. space (LxBxH): [m] 2,50 x 3,00 x 3,00

Equipment

Chip conveyor

Internal cooling: [bar]

Oil mist separator

Caliper Renishaw RMP 600

  workpiece air blast

  preparation for visual tool/data management

  Mazak API, Additional M code, B) G00 slope constant, 5 axis machining package, EIA/ISO function, Tool tip point control/simultaneous 5 axis, Fine spline interpolation, 5 axis spline interpolation, Syn
