立式五轴联动加工中心 | Mazak马扎克 | Variaxis 500-5X II | 2007年

[货号] CU20GSZ071611

[型号] Variaxis 500-5X II

[制造商] Mazak | 马扎克

[年份] 2007年

Specifications

Travel:

X-Axis: [mm] 510

Y-Axis: [mm] 510

Z-Axis: [mm] 460

A-Axes + 30°/ -120°

C-Axis 360°

Rapid motion: (X/Y/Z) [m/min.] 52

Amount of controlled axes: 5

Distance table surface - spindle nose: [mm] 190 - 650

Rotational speed: [rpm] 12.000

Spindle motor: [kW] 20

Tool: ISO 40

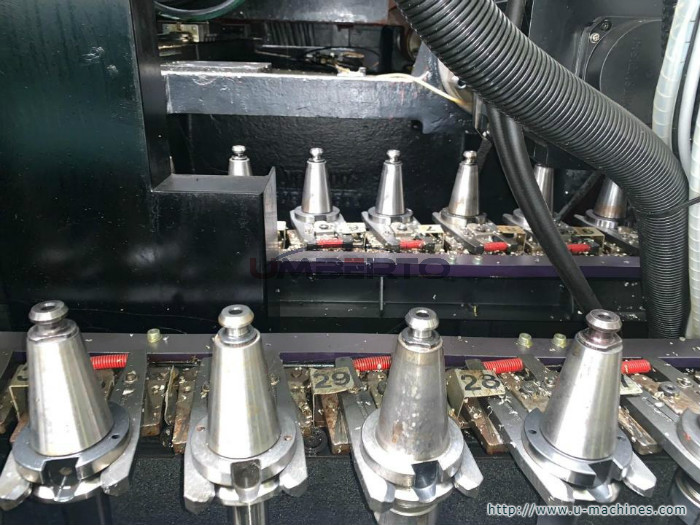

Tool capacity: 30

Tool diameter: [mm] 80 / 125

Tool lenght: [mm] 300

Tool weight: [kg] 8

NC-panning and rotary Table

Table size: [mm] 500 x 400

Max. Table Load: [kg] 300

Req. space (LxBxH): [m] 4 x 3.2 x 2.8

Machine weight: [kg] 7.500

Equipment

Chip conveyor

Internal cooling: [bar] 20

Oil cooling
