车床 | Mazak马扎克 | QT Nexus 250 ML | 2007年

[货号] CU20GSZ071606

[型号] QT Nexus 250 ML

[制造商] Mazak | 马扎克

[年份] 2007年

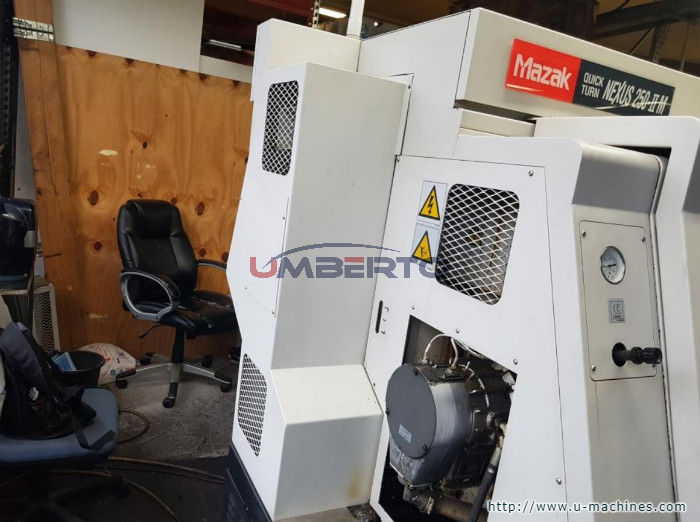

Lathe machine Mazak QT Nexus 250 ML

CNC Turning / Millingcenter

Machine type: Mazak QT Nexus 250 ML

Control: Mazatrol Matrix Nexus

Year: 2007

Power on time: [h] 38.500

Working hours: [h] 10.700

Spindle running time: [h] 8.972

Specifications

Max. turning length: [mm] 1.000

Turningdiameter: [mm] 380

Max. swing over bed: [mm] 675

Spindle bore: [mm] 88

Bar capacity: [mm] 74

Spindle nose: A 2 - 8

C-Axis 0,001°

Rotational speed: [rpm] 35 - 4.000

Input power: [kW] 26

Torque: [Nm] 465

Tailstock MK 4, programmierbar / programmable

quill range: [mm] 550

Travel:

X-Axis: [mm] 230

Z-Axis: [mm] 1.000

Rapid motion: (X/Z) [m/min] 30 / 33

Amount of turrets: 1

Tool capacity: 12

Driven Tools 4

revolution driven tools 25 - 4.500

drive power driven tools [kW]: 5,5

Torque: [Nm] 35

Power consumption: [KW] 41 kVA

Machine weight: [kg] 5.000

Req. space (LxBxH): [m] 2,60 x 1,80 x 1,90

Equipment

High pressure pumps

cooling system

Tool setter Tool eye

Synchron tapping für angetriebene Werkzeuge / for driven tools

3-jaw chuck [mm] Ø 254

Tool holders 10 feststehende / 10 fixed

Tool holders 2 angetriebene / 2 driven

  EIA/ISO

Partscatcher

  Dokumentation
