五轴 | Mazak马扎克 | Integrex i400 | 2013年

[货号] CU20GSZ071626E5

[型号] Integrex i400

[制造商] Mazak | 马扎克

[年份] 2013年

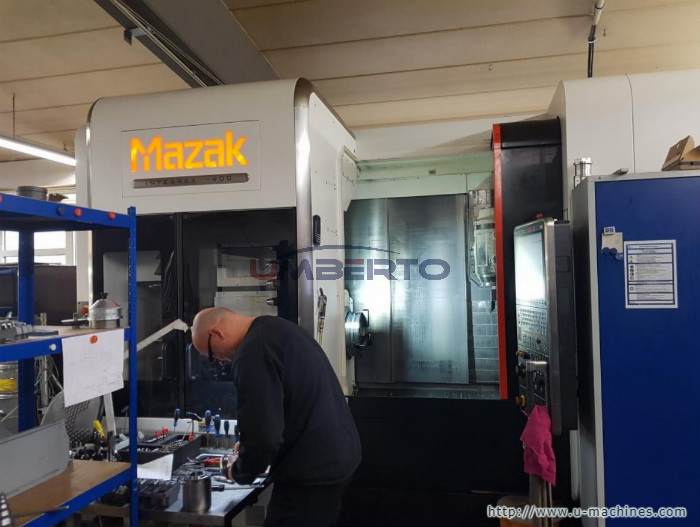

Lathe machine Mazak Integrex i400

CNC Milling / Turningcenter

Machine type:Mazak Integrex i400

Control:Mazatrol Matrix 2

Year:2013

Power on time: [h]17.244

Working hours: [h]10.347

Spindle running time: [h]7.829

Specifications

Max. turning length: [mm]1.011

Turningdiameter: [mm]658

Spindle bore: [mm]112

Bar capacity: [mm]102

C-Axis0,0001°

Rotational speed: [rpm]3.300

Input power: [kW]30

Subspindle

Rotational speed: [rpm]4.000

Input power: [kW]22

Torque: [Nm]1.400

C-Axis

CNC-Spindle tilting for cutting and turningopertations

Rotational speed: [rpm]12.000

Input power: [kW]26

CNC-Spindle tilting for cutting and turningopertations

Angular range:

Tool:Capto 6

B-Axes0,0001°

Toolchanger

Tool capacity:72

Machine weight: [kg]15.200

Req. space (LxBxH): [m]4,910 x 2,800 x 2,720

Equipment

Chip conveyor

Internal cooling: [bar]15 bar Hochdruckkühlung, 7 Druckstufen einstellbar / 70 bar high pressure cooling, 7 pressure levels adjustable

3-jaw chuck [mm]250 mm

Air blow

Tool settertool eye

Interfacelan

 intell. Wärmeschild

 CE-Zeichen / CE mark
