车铣复合 | Mazak马扎克 | Integrex i200 | 2013年

[货号] CU20GSZ071619E86

[型号] Integrex i200

[制造商] Mazak | 马扎克

[年份] 2013年

Lathe machine Mazak Integrex i200

CNC Milling / Turningcenter

Machine type:Mazak Integrex i200

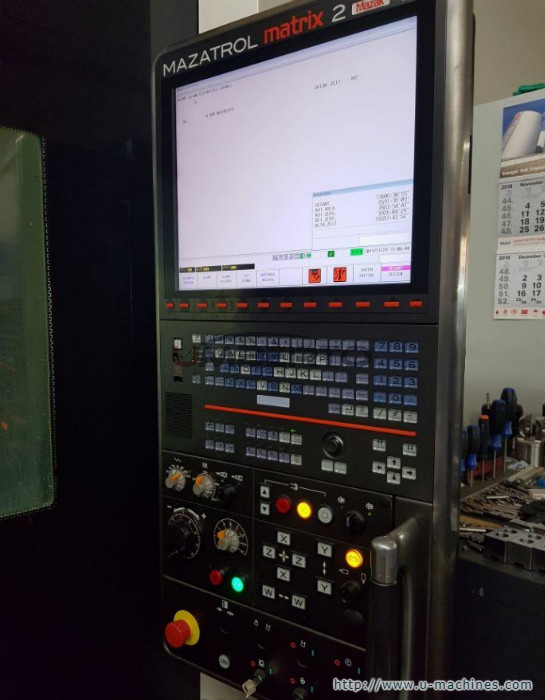

Control:Mazatrol Matrix Nexus II

Year:2013

Power on time: [h]16.935

Working hours: [h]7.902

Spindle running time: [h]5.840

Available after:Mai 2020

Specifications

Turningdiameter: [mm]658

Max. turning length: [mm]1.011

Bar capacity: [mm]51

Max. workpiece weight: [kg]300

C-Axis0,0001°

Rotational speed: [rpm]5.000

Input power: [kW]22

Torque: [Nm]467

Travel:

5-axis-simultaneous

X-Axis: [mm]615

Y-Axis: [+/- mm]259

Z-Axis: [mm]

B-Axes0,001°

Tailstockprogrammierbar / programmable

QuillMK 5

CNC-Spindle tilting for cutting and turningopertations

Rotational speed: [rpm]12.000

Input power: [kW]22

Tool:Capto C6

Toolchanger

Tool capacity:72

Req. space (LxBxH): [m]3.99 x 2.80 x 2.72

Machine weight: [kg]12.800

Equipment

Chip conveyorMayfram

Cooling pumps

Internal cooling: [bar]15

EIA/ISO

3-jaw chuck [mm]Ø 250 mm

 Ölkühler

Interface
