五轴 | Mazak马扎克 | Integrex e-410 HS | 2004年
产品说明

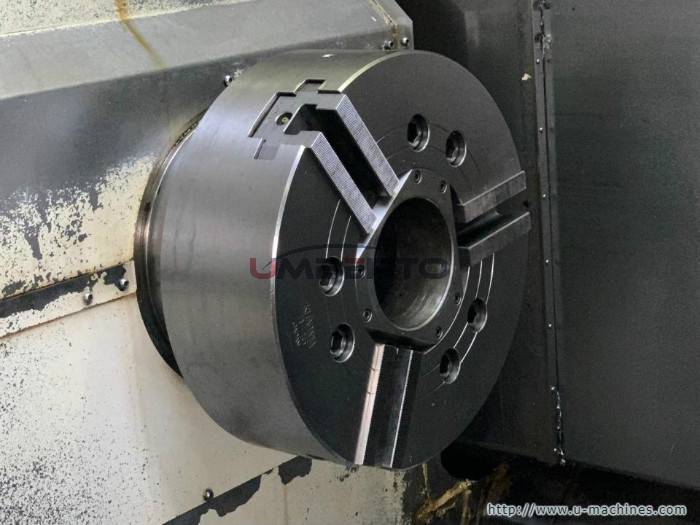

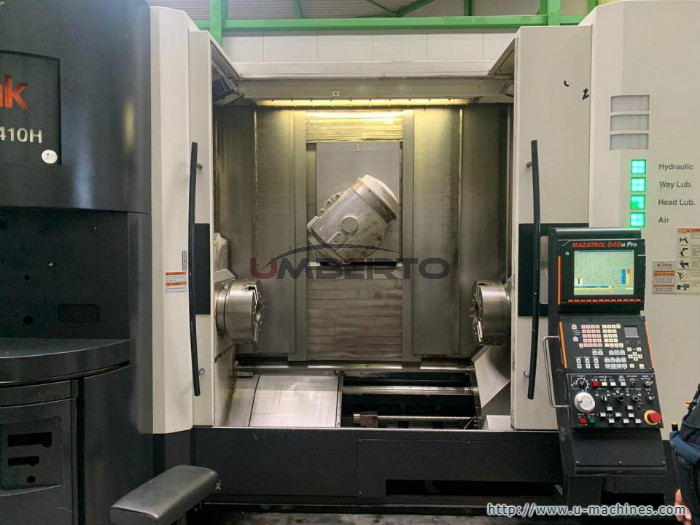

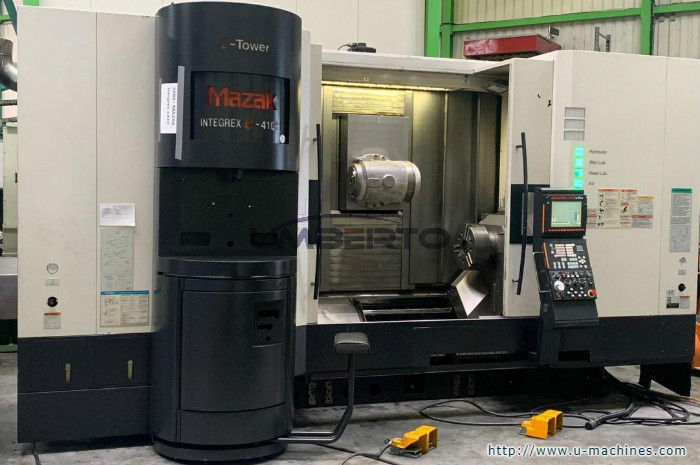

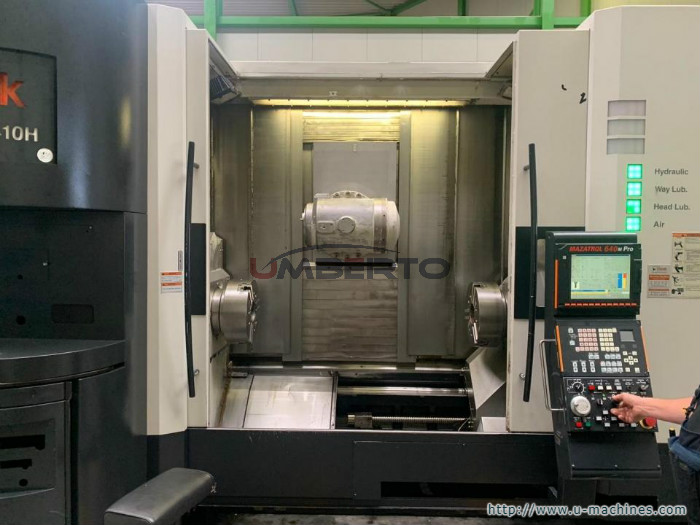

五轴 | Mazak马扎克 | Integrex e-410 HS | 2004年 [货号] CU20GSZ071623E58 [型号] Integrex e-410 HS [制造商] Mazak | 马扎克 [年份] 2004年 Lathe machine Mazak Integrex e-410 HS multi tasking CNC Milling / Turningcenter Machine type: Mazak Integrex e-410 HS multi tasking Control: Mazatrol Fusion 640 M Pro Year: 2004 Specifications Max. turning length: [mm] 1.388 Turningdiameter: [mm] 610 Bar capacity: [mm] 77 Spindle nose: ASA 8" Chuck main spindle BL 210 C-Axis
Rotational speed: [rpm] 35 - 4.000 Input power: [kW] 26
Travel: X-Axis: [mm] 740 Y-Axis: [+/- mm] 205 Z-Axis: [mm] 1.388 / 1.370 C-Axis Rapid motion: (X/Y/Z) [m/min.] 50
Subspindle Spindle nose: ASA 8" Chuck subspindle BL 210 Rotational speed: [rpm] 35 - 4.000 Input power: [kW] 26

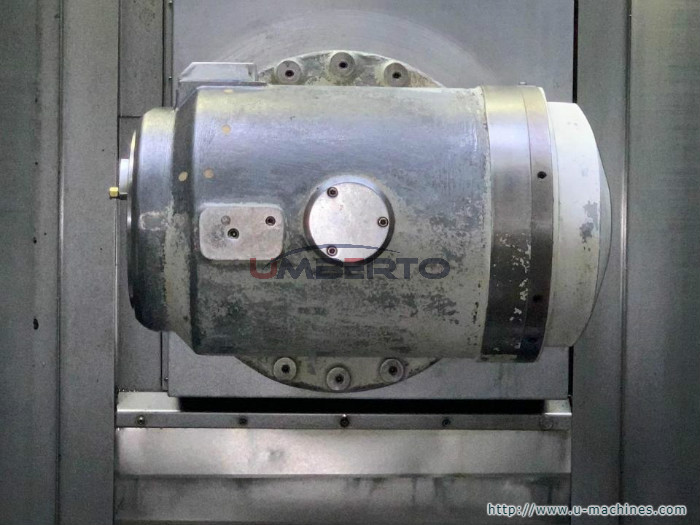

CNC-Spindle tilting for cutting and turningopertations Rotational speed: [rpm] 12.000 Input power: [kW] 22 Tool: Capto C6 B-Axes
Toolchanger Tool capacity: 40
Machine weight: [kg] 19.000 Req. space (LxBxH): [m] 5,070 X 2,920 X 2,952 |
