德国HOFLER霍夫勒 PORTA 3500 成型磨齿机.

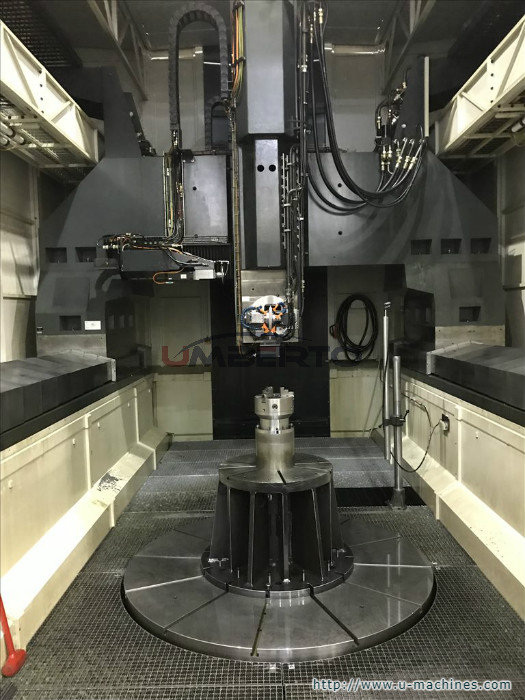

HOFLER PORTA 3500 CNC INTERNAL & EXTERNAL GEAR GRINDER

磨齿机 | HOFLER霍夫勒 | PORTA 3500 | 2007年

[货号] CU20AP0902130U

[型号] PORTA 3500

[制造商] HOFLER | 霍夫勒

[年份] 2007年

美国标准公制

用于齿侧磨削的工件数据

叶尖圆直径(外磨):137.8”

根圆直径(外磨):3.9”

刀尖圆直径(内磨):31.5"

根圆直径(内磨):129.9”

工件直径:137.8”

牙齿数量:无限

Max。概要文件高度:3.15”

分钟。- Max。模块:0.04“-1.34”

螺旋角左/右:45度

外磨行程:65”

内磨行程:47.2”

外圆磨削工件数据(可选件)

工件直径:137.8”

内圆磨孔直径:9.8" - 82.7"

配备:

西门子西门子数控控制

SPECIFICATIONS

US Standard Metric

Workpiece Data for Tooth Flank Grinding

Tip Circle Diameter (External Grinding): 137.8"

Root Circle Diameter (External Grinding): 3.9"

Tip Circle Diameter (Internal Grinding): 31.5"

Root Circle Diameter (Internal Grinding): 129.9"

Workpiece Diameter: 137.8"

Number of Teeth: Unlimited

Max. Profile Height: 3.15"

Min. - Max. Module: 0.04" -1.34"

Helix Angle Left / Right: 45°

External Grinding Stroke: 65"

Internal Grinding Stroke: 47.2"

Workpiece Data for Cylindrical Grinding (Option)

Workpiece Diameter: 137.8"

Diameter of Bore for Internal Cylindrical Grinding: 9.8" - 82.7"

Equipped With:

Siemens Sinumerik CNC Control

Dimensions & Weight: Call Perfection Global for Dimensions, 0 Lbs

Preliminary Specifications....
