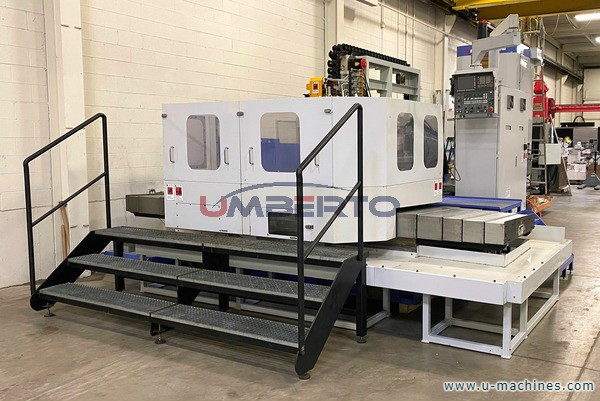

卧式镗铣床 | 三菱Mitsubishi | MHT1416 | 2013年(新机)

价格
¥2850000 元/Mitsubishi | 三菱
型号
MHT1416
年份
2013
产品编号 CU20AL091029
  • 产品说明

卧式镗铣床 | 三菱Mitsubishi | MHT1416 | 2013年(新机)

[货号] CU20AL091029

[型号] MHT1416

[制造商] Mitsubishi | 三菱

[年份] 2013年(新机)

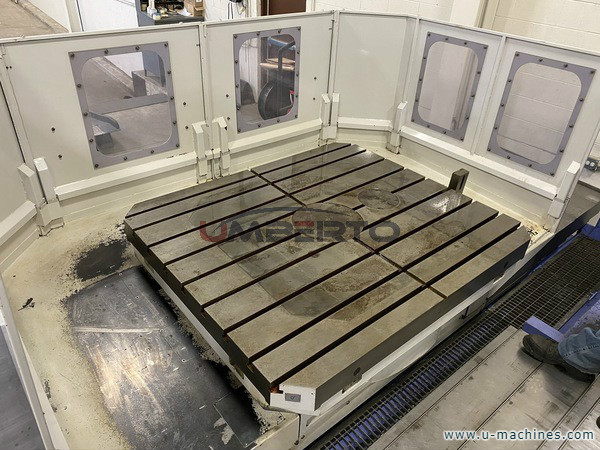

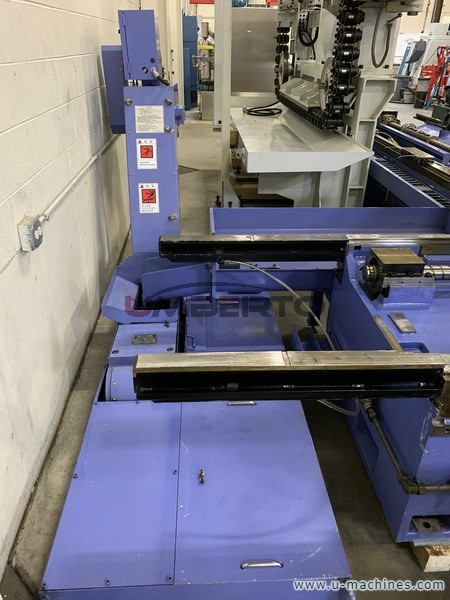

转台:

-尺寸:55.1英寸x 63英寸

-负载能力…………17600 Lbs。

-增量分度/旋转进给(B轴)…………0.001度。


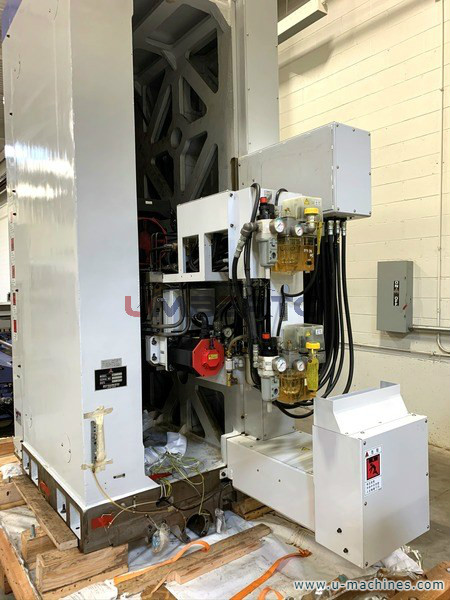

行程:

-W轴(镗主轴)…………19.7“

-X轴(表)78.7“

-Y轴垂直(主轴头)-从工作台上方4“开始…………59.1”

-Z轴(立柱)…………51.2“


主轴端部与工作台中心之间的距离…………-2.0“-68.9”


进给速度:

-快速移动,X/Y/Z轴…………1181 IPM

-快速横移主轴(W轴)…………236 IPM

-切削率…………0.04-236.2 IPM

-手动切削速度-(1)轴同步…………0.04-157 IPM

-工作台快速横向旋转(B轴)…………1000度/分钟。


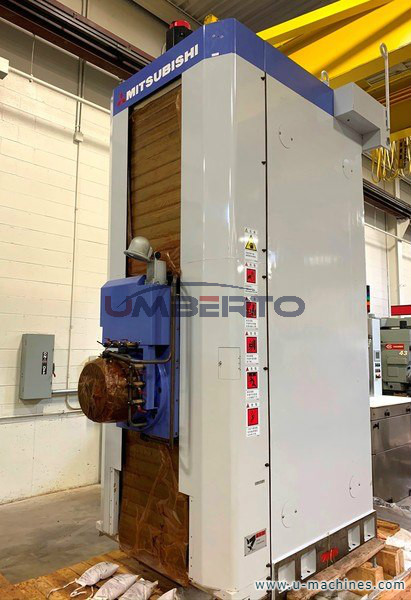

主轴:


-转速14-4000转/分

-电动机40/50 HP

-速度变化-步骤2

-直径5.1“

-锥度ISO 50

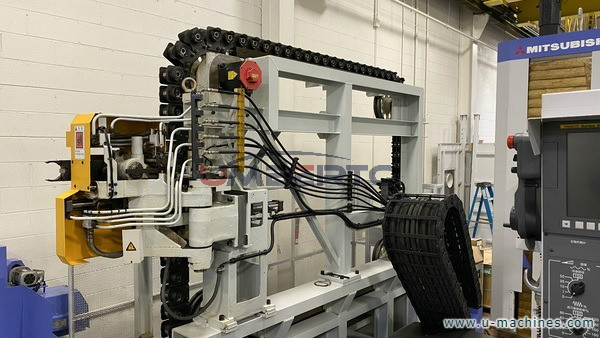

自动换刀库:

-储存的刀具数量…………80

-刀具选择系统…………刀架编号/最短路径

-刀具长度-最大值19.7“

-刀具重量-最大值66 Lbs。

-刀具直径-带相邻刀具的最大刀具直径…………4.3“

-刀具直径-不带相邻刀具的最大圆形…………11.8“

-刀具直径-最大镗刀…………19.7“x 9.4”

-更换时间…………9秒。+/-2秒。


标称重量-…………63850 Lbs。



配备:

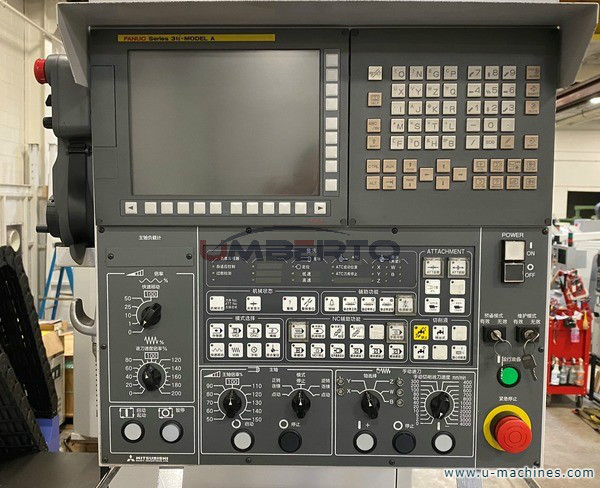

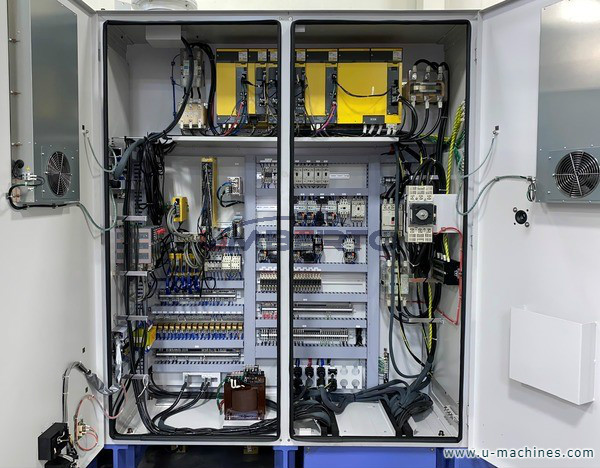

Fanuc 31i-A CNC控制(手动点动悬挂控制)

80工位自动换刀库

通过主轴冷却液和溢流冷却液

主轴冷水机组

内置B轴转台

刀具寿命监测,自动工件测量(宏),测量和补偿。

刚性攻丝

双排屑器(Z轴两侧)

带冷却液箱的铰链式钢带排屑机

机器外壳和相关走道

文档

变压器


*初步规范有待验证


SPECIFICATIONS:

Table:

- Size...........................................................55.1" x 63"

- Load Capacity..................................................17,600 Lbs.

- Incremental Indexing/Rotating Feed (B-Axis).....................0.001 Deg.

Travels:

- W-Axis (Boring Spindle)..............................................19.7"

- X-Axis (Table).......................................................78.7"

- Y-Axis Vertical (Spindle Head) - from 4" above Table.................59.1"

- Z-Axis (Column)......................................................51.2"

Distance between Spindle End & Table Center...................- 2.0" - 68.9"

Feeds Rates:

- Rapid Traverse, X/Y/Z Axes.......................................1,181 IPM

- Rapid Traverse Spindle (W-Axis)....................................236 IPM

- Cutting Rate..............................................0.04 - 236.2 IPM

- Manual Cutting Rate - (1) Axis Simultaneous.................0.04 - 157 IPM

- Rapid Traverse Rotation of Table (B-Axis)..................1,000 Deg./Min.

Spindle:

- Speed.......................................................14 - 4,000 RPM

- Motor.............................................................40/50 HP

- Speed Change - Step......................................................2

- Diameter..............................................................5.1"

- Taper...............................................................ISO 50

Automatic Tool Changer:

- Number of Tools Stored..................................................80

- Tool Selection System.........................Tool Pot Number/Shortest Way

- Tool Length - Maximum................................................19.7"

- Tool Weight - Maximum..............................................66 Lbs.

- Tool Diameter - Maximum w/Adjacent Tool...............................4.3"

- Tool Diameter - Maximum Round w/o Adjacent Tool......................11.8"

- Tool Diameter - Maximum Boring Tool...........................19.7" x 9.4"

- Change Time..............................................9 Sec. +/- 2 Sec.

Weight - Catalog.................................................63,850 Lbs.


EQUIPPED WITH:

Fanuc 31i-A CNC Control (Manual Jog Pendant Control)

80 Station Automatic Tool Changer

Through Spindle Coolant & Flood Coolant

Spindle Chiller Unit

Built-in B-Axis Rotary Table

Tool Life Monitor, Automatic Work-Piece Measuring (Macro), Measuring & Comp.

Rigid Tapping

Dual Chip Augers (Both Sides of Z-Axis)

Hinged Steel Belt Chip Conveyor with Coolant Tank

Machine Enclosure & Related Cat Walk

Documentation

Transformer


*Preliminary Specifications Subject to Verification
