首页 | Home >> 设备信息 | Machine Info >>磨床 | Grinder >>坐标磨床 >> 坐标磨 | 豪泽HAUSER | S35-400 | 2015年
详细说明

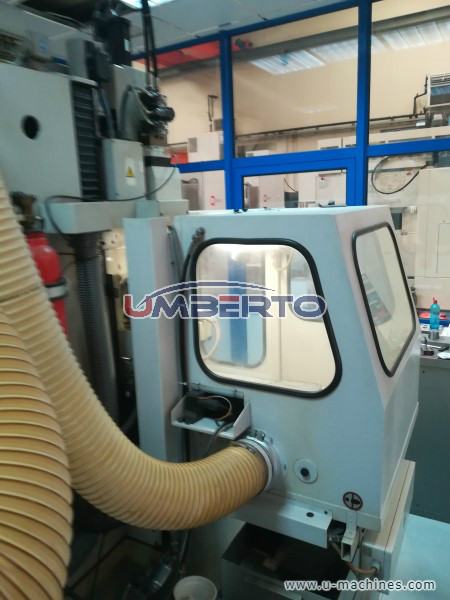

坐标磨 | 豪泽HAUSER | S35-400 | 2015年

价格
¥1395000 HAUSER | 豪泽
型号
S35-400
年份
1991+2015
产品编号 CU20GP121412EU
  • 产品说明

[货号] CU20GP121412EU

[型号] S35-400

[制造商] HAUSER | 豪泽

[年份] 1991年+2015年原厂翻新


Scope of Supply Analysis of deliverables with the machine:

240008     1   MSS Multi-Sensoric-System

203992     1   Dressing attachment for CBN grinding wheels with HF drive,

240723     1   Graphics package

240724     1   Rotation of coordinate system

206718     1   Constante path speed of the axes X and Y on the workpiece contour.

206719     1   Dressing (cylindrical) cycles for bore and contour grinding.

203615     1   HI-CUT system for the use of cutting oil, consiting of:

144017     1   Grinding motor type 45S, E19 speeds 9'000-45'000r.p.m.

144019     1   Grinding motor type 45ST, E19 speeds 9'000-45'000r.p.m., Face grinding

144021     1   Grinding motor type 80S, F6 speeds 40'000-80'000r.p.m.

146305     1   Set of 6 collets type EX 19, Ø 3,4,5,6,8,10 mm

144282     1   Set of 2 collets type F6, Ø 3,4 mm

156620     1   Grinding arbour with collet profile E 19, Length 35 mm

156016     1   Grinding arbour with collet profile E 19, Length 50 mm

156017     1   Grinding arbour with collet profile E 19, Length 75 mm

156018     1   Grinding arbour with collet profile E 19, Length 100 mm

141218     1   Trunk cable for the grinding motors

164225     1   Grinding turbine T16, speeds up to 160’000 rpm, with collet F4 / Ø4

166497     1   Turbine holder with filter

144022     1   Slot grinding attachment, with centering device and 4 grinding wheel holders

155352     1   Set of clamping tools

155359     1   Set of 4 parallel strips

166394     1   Set of 4 supports of clamps

    N          1   Set of grinding wheels of 50 ceramic and CBN grinding wheels
