五轴 | MAZAK 马扎克 | Integrex i150 | 2008年

[货号] CU21AR012514

[型号] Integrex i150

[制造商] MAZAK | 马扎克

[年份] 2008年

LIVE TOOLING / MILLING

C-Axis: Equipped With

Y-Axis: Equipped With

Live Tooling / Milling: Equipped With

B-Axis: Equipped With

B-Axis Travel: 200°"

SPECIFICATIONS

Distance Between Centers: 15"

Max Swing Over Bed: 16"

Max Turning / Cutting Length: 15"

Max Cutting / Turning Diameter: 13"

SPINDLE

Bar Capacity: 2.50"

Chuck Size: 8"

Chuck Type: Hydraulic

Spindle Speed: 5,000 RPM

Spindle Motor: 15 HP

SECOND SPINDLE

Total Spindles: 1

TURRET

Single Turret: Equipped With

Single Turret Live Tooling: Equipped With

Tool Positions: 72

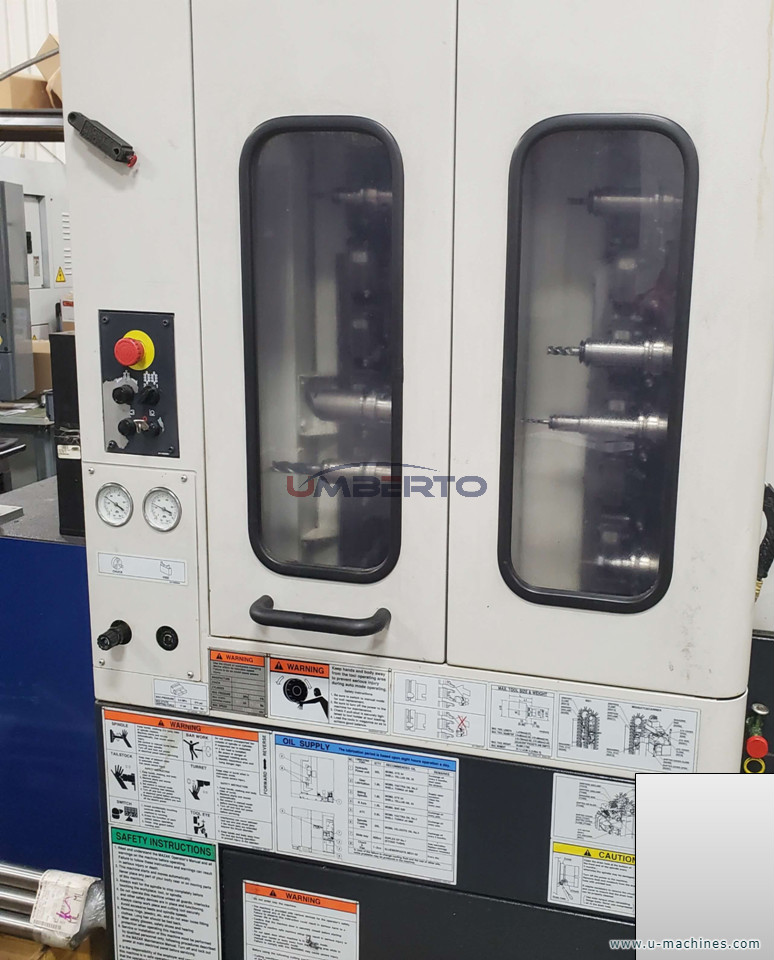

Turret Options: HSK Magazine

CONTROL

Control Make/Model: Mazatrol Matrix Control

Additional Control Options: Mazzac 3D High Speed Software Fanuc G-05

High Smoothing Control Function

5X Simultaneous Input Function

OPTIONS

Machine Options: Parts Catcher

Additional Machine Specs: B-Axis Max Speed: 20,000 RPM

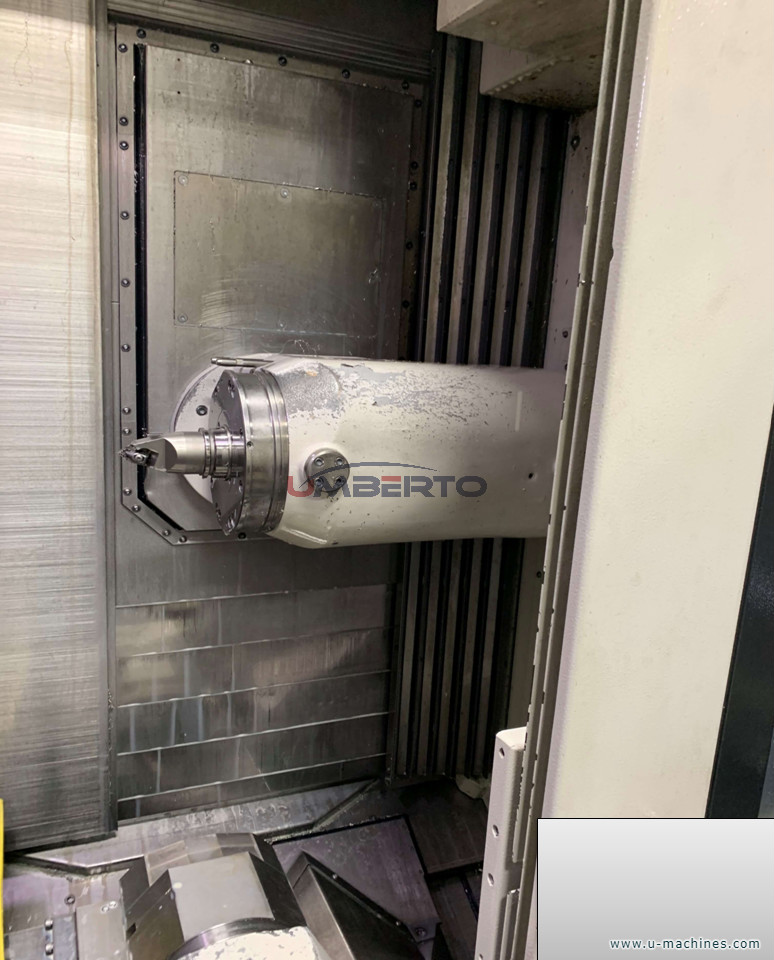

B-Axis HSK-63 Mill Spindle

Double Foot Switch

Preparation for Mist Collector

Chip Conveyor Side Discharge

Chuck Air Blast

Coolant & Air Blast for Chuck Jaws

Work Unloading Unit

Signal Tower 3-Colors

Mill-Spindle Synch Tapping

F-Tool Tip Control Function – 5X

F-Tool Radius Control Function – 5X

Coolant Types: Flood Coolant;High Pressure Coolant

High Pressure Coolant PSI: 231 PSI

Chip Removal: Chip Conveyor
