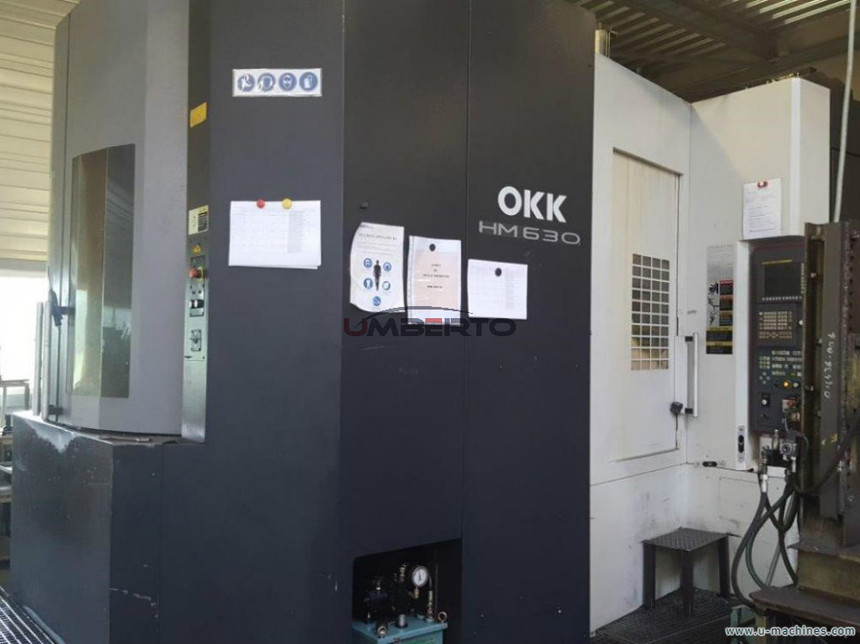

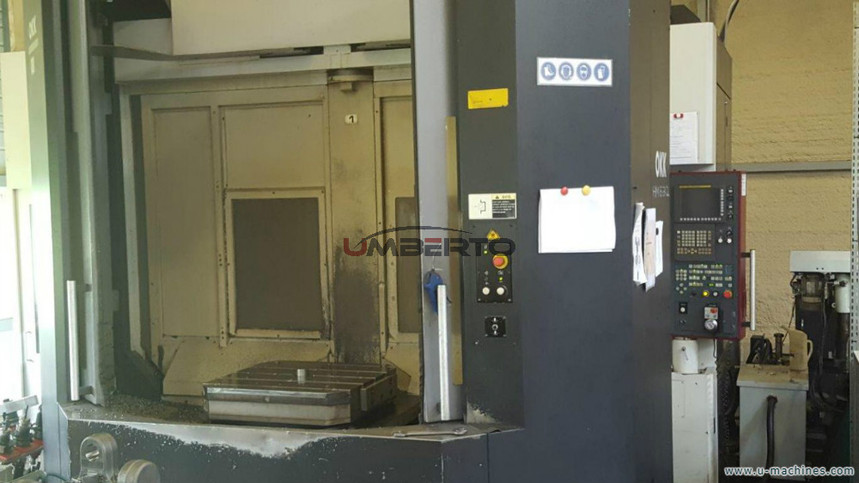

卧加 | OKK | HM 630 | 2008年
产品说明
卧加 | OKK | HM 630 | 2008年 [货号] CU21D3A022513 [型号] HM 630 [制造商] OKK [年份] 2008年 CNC Control: FANUC 310 is model A Axes X axis mm: 1050 Y axis mm: 900 Z axis mm: 900 B axis: 360,000 positions Max. rapid traverse speed m / min: 54 Pallet Number of pallets: 2 Dimensions mm: 630 x 630 Max. workpiece weight kg: 1300 Spindle Spindle speed rpm: 10000 Spindle drive power kW: 25 Tool system Tool type: BT 50 Positions in magazine St.: 160 Equipment Internal cooling Chip conveyor Electronic handwheel
|
