复合加工中心 | Mazak马扎克 | Integrex 400-IV ST/1500 | 2010年

价格
¥2100000 MAZAK | 马扎克
型号
Integrex 400-IV ST/1500
年份
2010
产品编号 CU21AA01226
  • 产品说明

复合加工中心 | Mazak马扎克 | Integrex 400-IV ST/1500 | 2010年

[货号] CU21AA01226

[型号] Integrex 400-IV ST/1500

[制造商] Mazak | 马扎克

[年份] 2010年

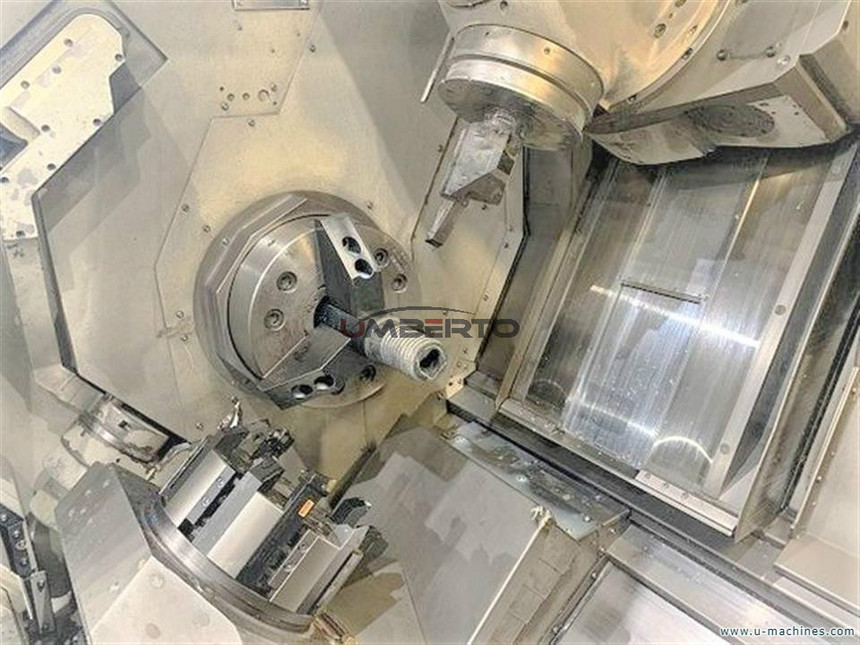

Chuck Size Main / Subspindle: 12" Hydr/10" Hydr

Maximum Swing/Using Y Axis: 34" / 26"-30"

Maximum Cutting Length: 60"

Distance Between Chuck Faces: 60.2"

Travel X axis: 24.8"

Travel Y axis: +/- 4.53"

Travel Z axis: 62.41"

B Axis Movement: 225 Degrees

W Axis Travel - Subspindle: 60.24"

C Axis Main Spindle & Subspindle: .0001 Degree

Spindle Nose/Spindle Bore/Bar Cap.: A2-8" / 4.4" / 4.0"

Spindle Speeds: 35 - 3,300 RPM

Spindle Motor: 40 HP

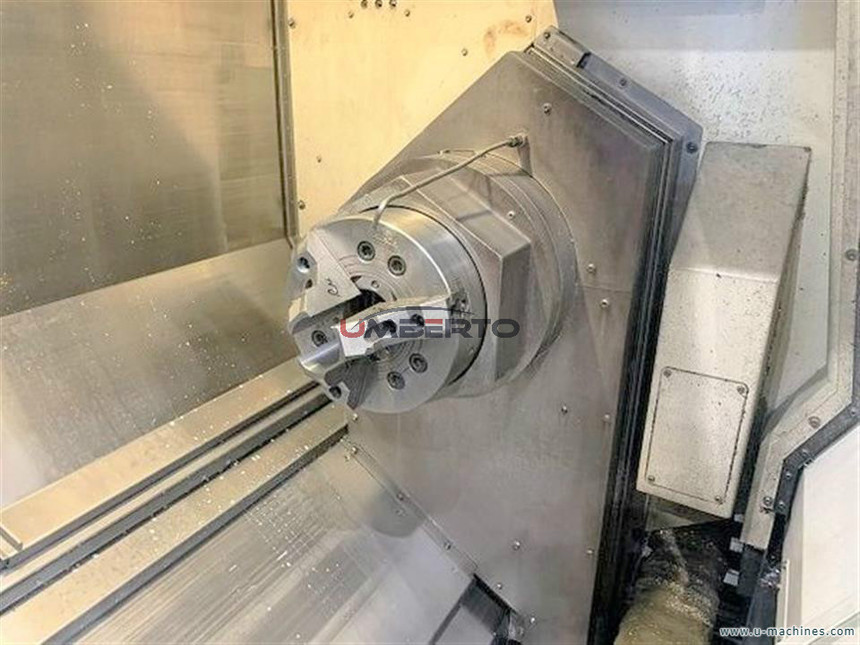

Subspindle Nose/Bore/Bar Capacity: A2-8" / 3.46" / 3.0"

Subspindle Speeds: 4,000 RPM

Subspindle Motor 30 min./ contin.: 35 HP / 30 HP

Rotary Tool Spindle Speed: 12,000 RPM

Rotary Tool Motor: 25 HP

Number of Tools in ATC - KM 63: 40 Tool Magazine

Rapid Traverse X, Z / Y / W: 1496/1024/1181 IPM

Machine Dimensions: 202"x93"x115"

Machine Weight: 28,500 lbs.

Equipped With:


Y Axis Capability

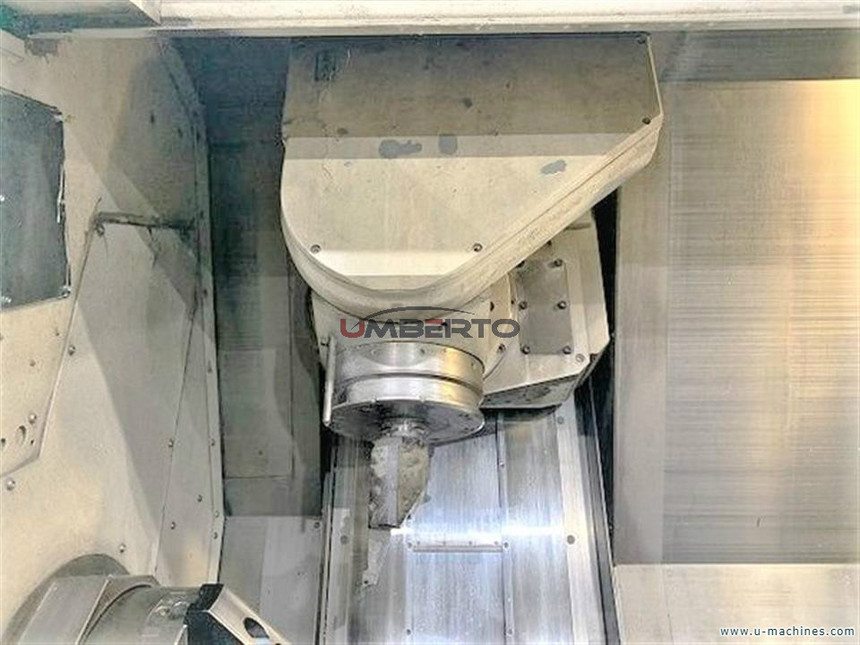

B Axis Pendulum Head

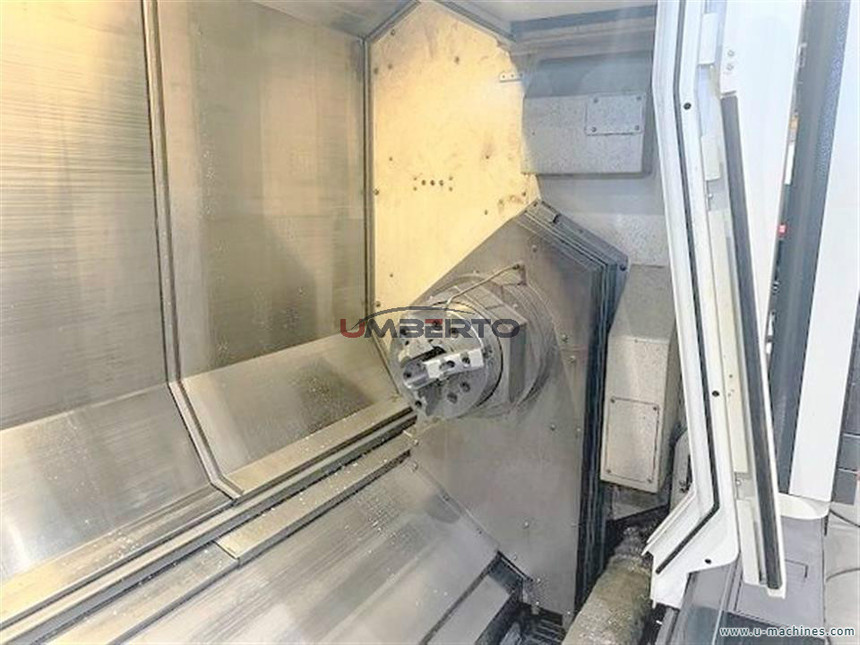

Subspindle

Full "C" Axis Main Spindle and Subspindle

Live Milling/Drilling Capability

12" & 10" 3 Jaw Hydraulic Chucks

40 Tool Magazine

Coolant Thru Mill Head

Chip Conveyor

Automatic Tool Eye

Chuck Air Blast Subspindle

Main & Subspindle Synchronous

Cylindrical Interpolation

EIA Coordinate Rotation

EIA Pattern Cycle

EIA/ISO 5-Axis Simultaneous Input

Flash Tool

G00 Slope Constant

Polar Coordinate Input

Rotary Axis Shape Compensation

Scaling/Coordinate System Rotation

Spiral EIA 3D Compensation

Threading

Thread Cut Speed Override

Tilted Workplane

Tool Center Point Control

Variable 600 Sets

3D Coordinate Rotation

Auto Pecking

Comparison Stop

EIA 3D Comp.

EIA Helical Tapping Cycle

EXT-Data I/O

G54.1

Lower Turret Mazatrol

Mill Spindle Sync. Tap.

Re-Thread

Rotation Geometric

Shape Compensation Rotary Axis

Sub C-Axis Control

Thread/Inverse Time

Thread Point Start Compensation

Tool Center Point Control

Tool Radius Compensation

5 Axis Simultaneous Machining

Milling Synchronous Tapping

User Macro w/ Interupt

IC Memory Card Interface

Cardbus Interface - 2 Slots

LAN Port Interface

USB Port Interface

Multi Tap Transformer 230/460 Volt

All Available Manuals
