卧加 | MAKINO 牧野 | A77 | 1998年
产品说明

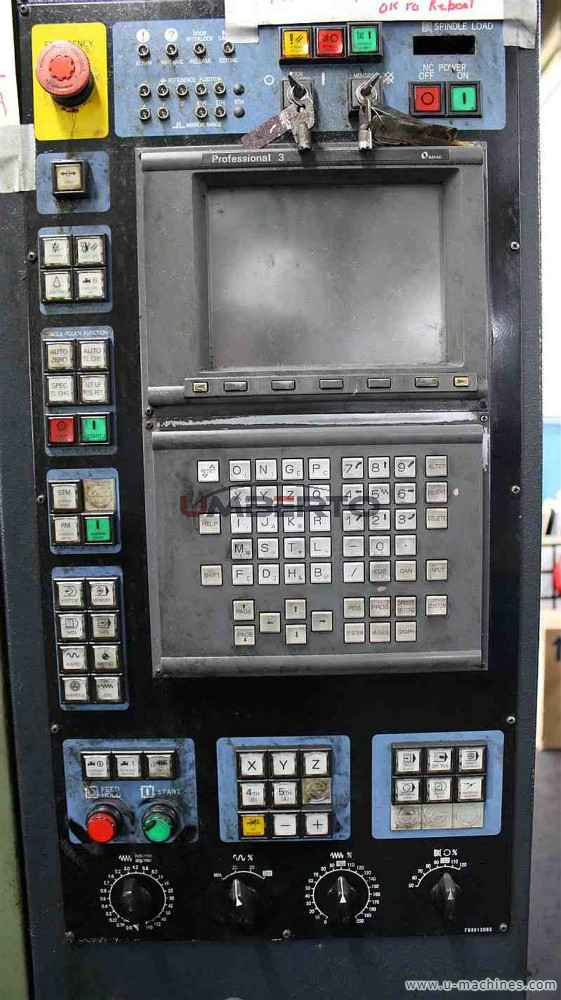

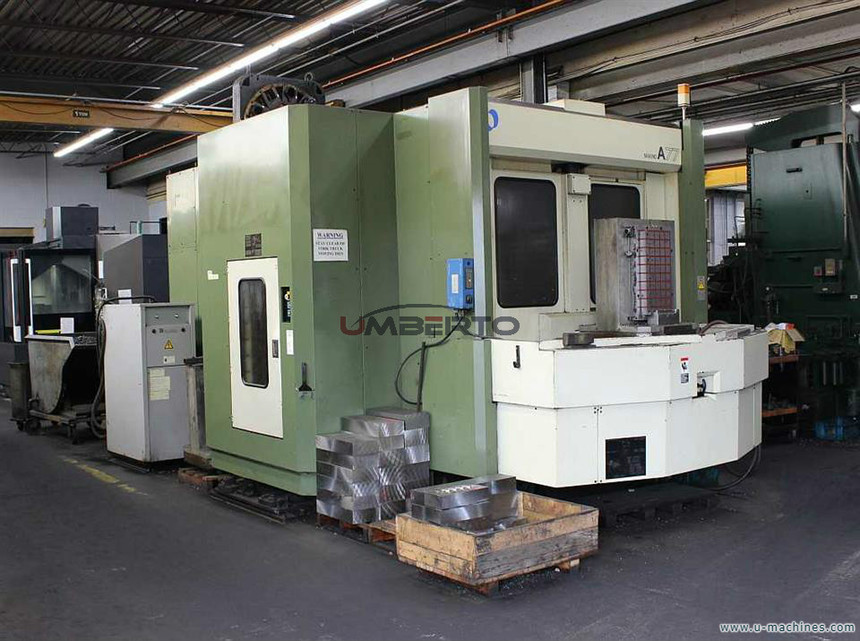

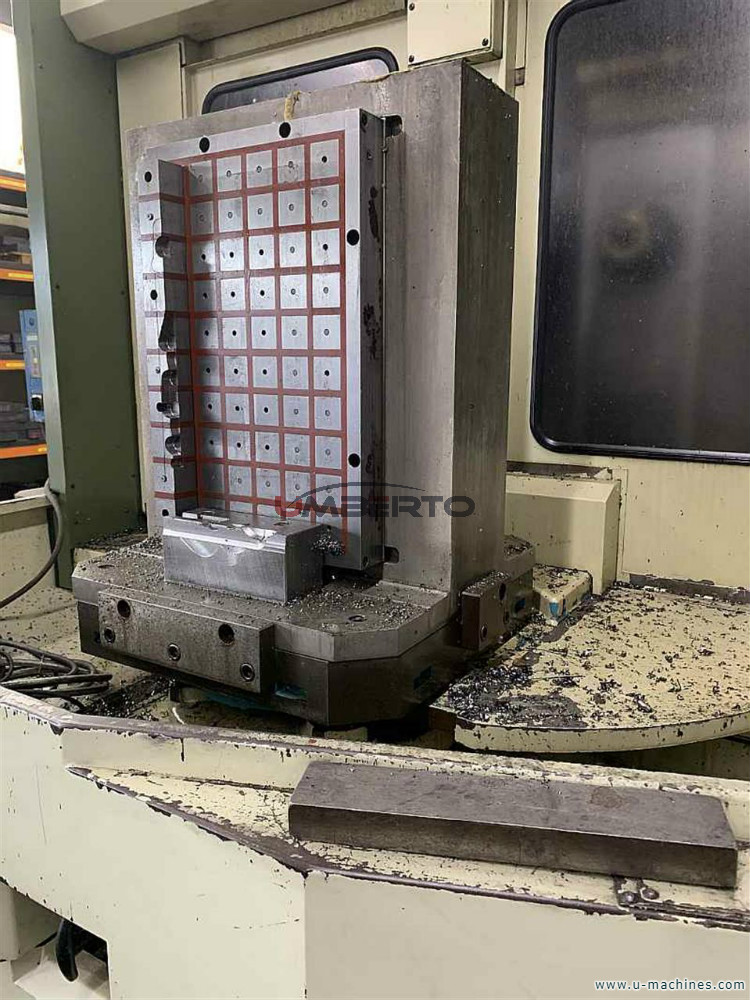

卧加 | MAKINO 牧野 | A77 | 1998年 [货号] CU21AA02235 [型号] A77 [制造商] MAKINO | 牧野 [年份] 1998年 1998 Leblond-Makino A77 Fanuc Pro 3 Control (16M) Specifications: Pallet Size / Number of Pallets:24.8" x 24.8"/2 plts. Table Load Capacity:2,640 lbs. Table Indexing:1 Degree Indexing Maximum Workpiece Size:35.8" x 39.4" X Axis Travel:31.5" Y Axis Travel:29.5" Z Axis Travel:30.3" Spindle Nose:CAT 50 Taper Spindle Motor:40 HP Spindle Speed:20 - 10,000 RPM Tool Magazine:40 Positions Maximum Tool Size D x L:11.8" x 17.7" Maximum Tool Weight:44 lbs. Machine Dimensions:253"x144"x131" Machine Weight:27,000 lbs. Equipped With: 9" Color CRT Data Server Super Geometric Intellence Control 640M Memory 210 PSI Coolant thru the Spindle Spindle Chiller Unit Chip Conveyor Auto Tool Length Measurement Helical Interpolation Rigid Tapping Multi Tap Transformer Air Dryer Scale Feeback System Remote Manual Pulse Generator (2) 24.8" Pallets (2) Abbott Workholding Systems 28" Tall x 25" Wide Tombstone (2) 15"x25" Electro-Magnetic Chuck Systems (21) #50 Taper Tool Holders All Available Manuals |
