落地镗床 | FRORIEP | FRORIEP

[货号] CU21IS032610

[型号] FRORIEP

[制造商] BFT150

[年份] 待确定

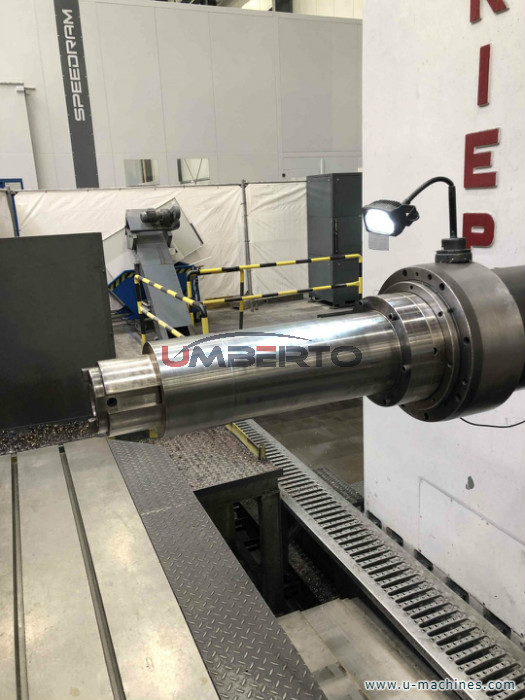

SPINDLE DIAM150 MM

RAM DIAM325 MM

X AXIS TRAVEL7000 MM

Z AXIS TRAVEL1400 MM

Y AXIS TRAVEL3700 MM

W AXIS TRAVEL800 MM

SECONDARY RAM TRAVEL1200 MM WITH ANGULAR HEAD 90° INCLINABLE 360°

SECONDARY RAM SECTION230 X 230 MM

SECONDARY RAM SPINDLE NOSEISO 50

SECONDARY RAM SPEED ROTATION6,3 - 1600 RPM

CNC ROTARY TABLE DIMENSIONS4000 X 4000 MM( INNSE BERARDI YEAR 2008)

MAX LOAD CAPACITY80 TON

TABLE TRAVEL2500 MM

SPINDLE NOSE TAPERISO 50

SPINDLE MOTOR POWER30 KW

SPINDLE SPEED3,15 - 800 RPM
